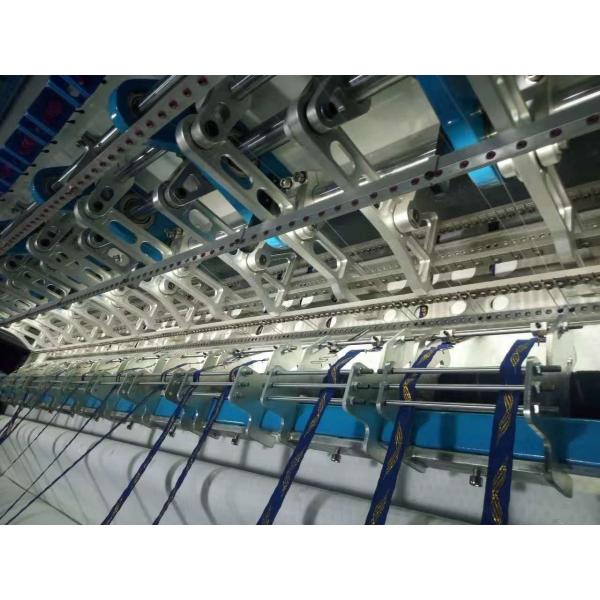

OEM Shuttless Mattress Quilting Machine 1100W Mattress Tape Edge Machine

  • 1
  • 2
  • 3

Brand Name : ZOLYTECH

Model Number : WV15

Certification : CE / ISO CERTIFICATE

Place of Origin : CHINA

MOQ : One Set

Price : USD 20000~50000 / SET

Payment Terms : L/C, T/T

Supply Ability : 30 SETS Per Month

Delivery Time : one month

Packaging Details : plastic packing / wooden box

width : 94 inch

voltage : 380v or 220v

power : 11 kw

needle bar : 3

needle type : 21 / 22 / 23 / 24

gurantee : 1 year

Contact Now

Computerized shuttless Mattress Border Machine , 11 KW Mattress Tape Edge Machine

Features:

  1. Easy operation of controlling system.
  2. New generation of integreted computer.
  3. Automatic lubrication system ( that works on anti friction component, ball screw and linear guideway ) enables labor saving and long life of the machine.
  4. Optional: 0.5 inch needle distance. Capable of making more patterns.
  5. Optional: slitting system. Precisely slitting after quilting for making mattress border tape.
  6. The technology of ' movable needle plate ' makes the quilting patterns more elegant.
  7. Larger diameter of main shaft and needle bar shaft ensures the stable performance during the machine working in high speed.
  8. Automatic stop when up or bottom thread is broken, and both up and down safety infrared protection.
  9. Both continuous patterns and Tack & Jump patterns (360° and 180°) are available.
  10. Controlling system based on Windows, CAD drawing.
  11. More tight thread stitches makes the quilting patterns with stronger three dimensional effect.

Key Parameters:

Dimension (L*W*H) 5400*1650*2050mm
Weight 5500kg
Quilting width 2450mm
Needle bar distance

50.8, 76.2, 127mm (5’’)

76.2, 76.2, 152.4mm (6’’)
Needle distance 25.4mm
X-axis movement displacement 304.8mm
Quilting thickness ≤80mm
Stitch length 3-7mm
Capacity 80-350 (m/hour)
Needle type 24/180 23/160 22/140 21/130
Main shaft speed 600-1500rpm
Voltage 380v/50hz 220v/60hz, 3-phase
Power 11KW

OEM Shuttless Mattress Quilting Machine 1100W Mattress Tape Edge Machine

OEM Shuttless Mattress Quilting Machine 1100W Mattress Tape Edge Machine
